LangChain vs LangGraph: What’s the Difference and When to Use Each

This guide explains what LangChain and LangGraph each do, how they fit together, and how to choose between them. It also covers Deep Agents — an agent harness for long autonomous tasks — so the full picture is clear before making a choice.

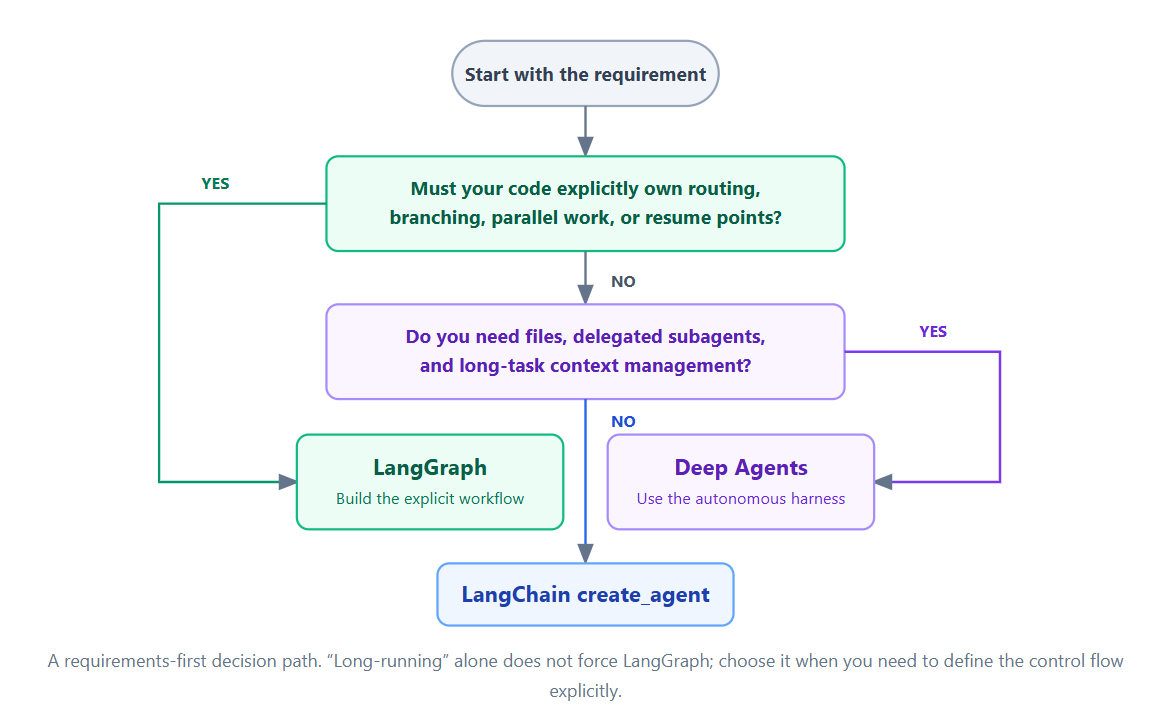

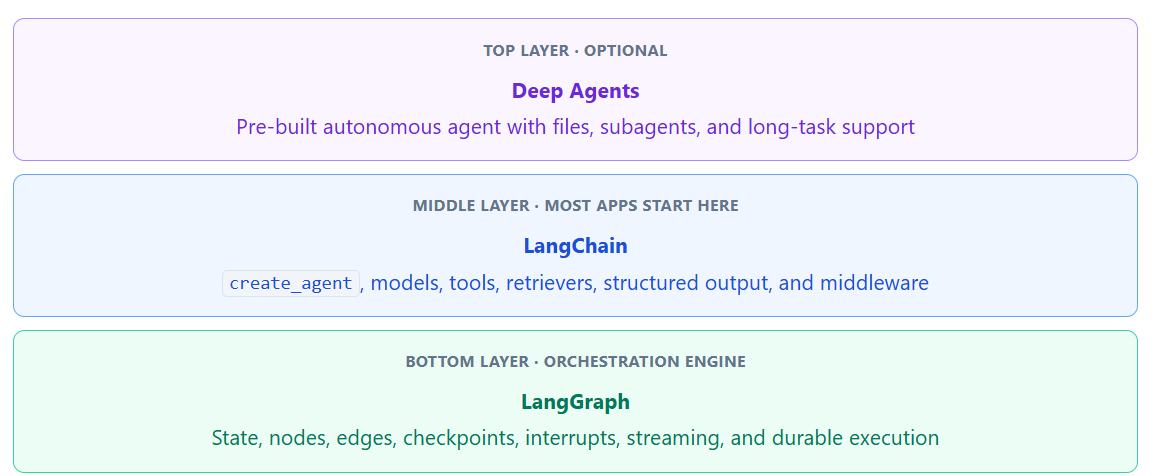

LangChain vs LangGraph vs Deep Agents at a Glance

---

Both LangChain and LangGraph come from the same team and power many AI apps — chatbots, document Q&A, and agents that call external APIs. Think of them like automatic and manual gearboxes: same engine, different control. LangChain is the agent framework; LangGraph is the low-level orchestration/runtime layer when the application must own every step, branch, and pause.

In the current Python stack, create_agent already runs on LangGraph. The choice is how much control flow your code must define — not which ecosystem to pick. Deep Agents is an agent harness for long autonomous tasks — planning, filesystem tools, subagents, and context management — covered below.

What Is LangChain? Start Here for Most Apps

---

LangChain is the agent framework — models, tools, retrieval, middleware, structured output, and more. LangChain provides abstractions for building RAG; RAG itself does not require LangChain. create_agent is its high-level agent abstraction with a built-in model-and-tool loop, extendable via middleware, structured output, custom state, streaming, and other runtime behaviors. Need a human to approve a refund? Add human-in-the-loop middleware — or call interrupt() directly. For straightforward approval flows, you don’t need to manually construct a LangGraph workflow. Interrupt and resume rely on persisted graph execution state — that is why a checkpointer and stable thread_id are required.

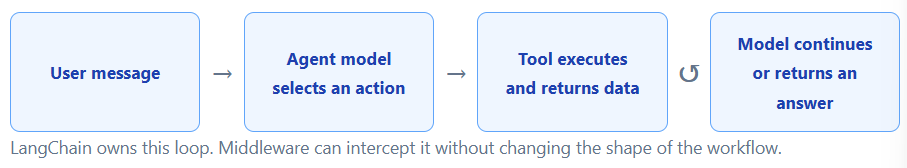

Execution flow

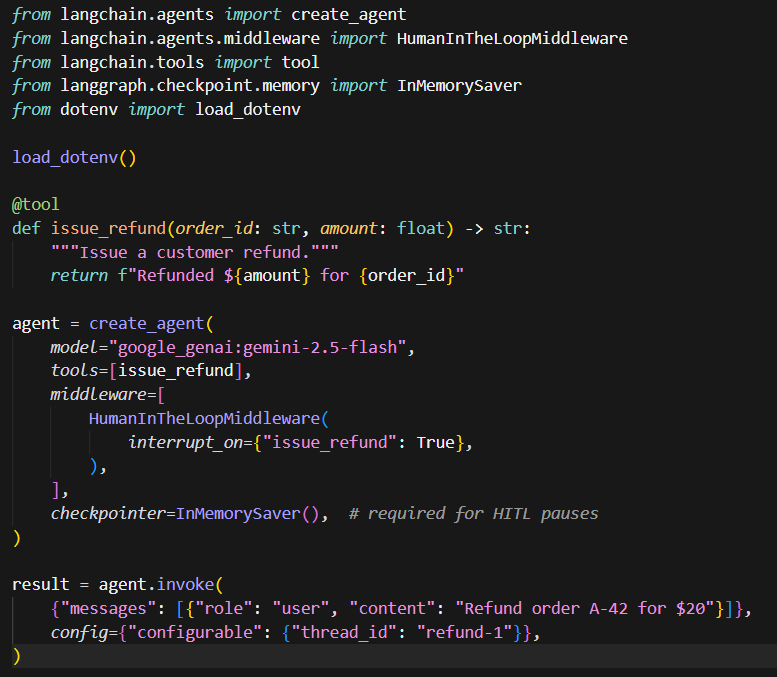

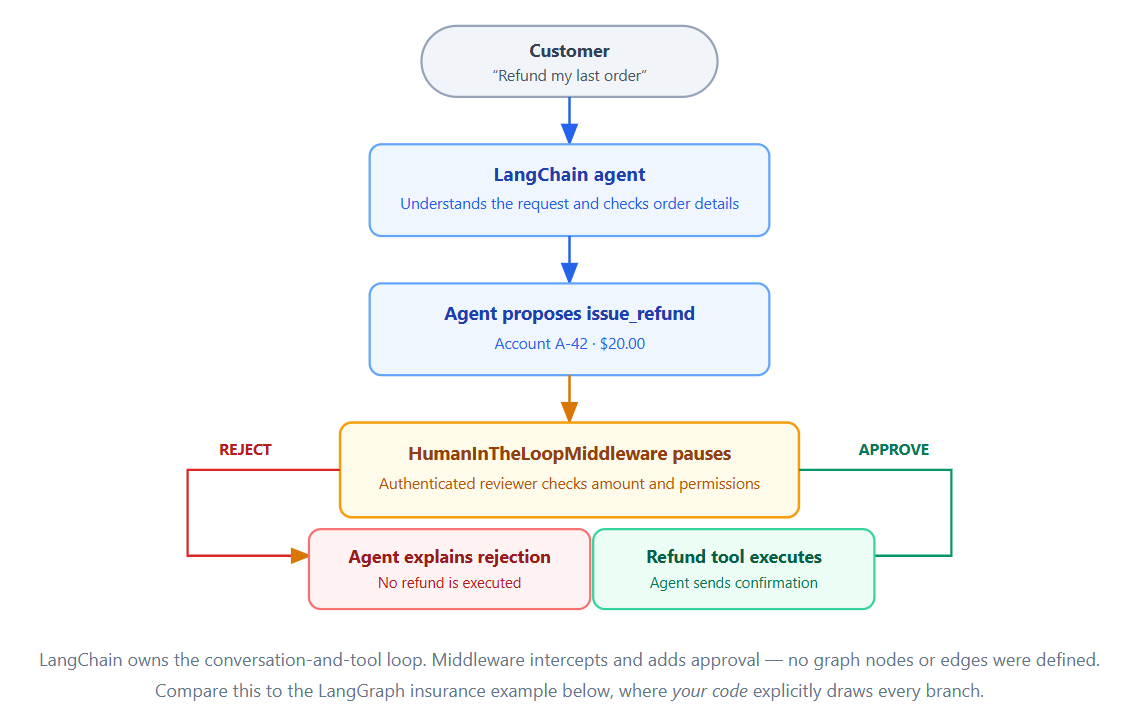

Example: customer refund with human approval

When the model proposes a sensitive refund tool, middleware pauses for a reviewer — no need to manually construct a LangGraph workflow.

On interrupt, inspect the pending tool call, then resume with Command(resume=...) using the same thread_id. See the human-in-the-loop docs for approve / edit / reject patterns. Use a durable checkpointer (for example Postgres) in production.

What Is LangGraph? Use It When Your Code Owns the Route

---

LangGraph is a low-level orchestration/runtime framework where application state flows through nodes (model calls, tools, or rules) and edges, giving developers explicit control over execution, routing, persistence, and interrupts. LangGraph does not mean every decision must be hard-coded — a node can still call an LLM. Your application explicitly controls workflow structure and state transitions, whether routing is deterministic or model-driven inside nodes.

Reach for LangGraph when control flow is part of the product: missing-document loops, parallel policy checks, risk-based routing, or stage-specific human review. Use a durable checkpointer (such as PostgreSQL) in production.

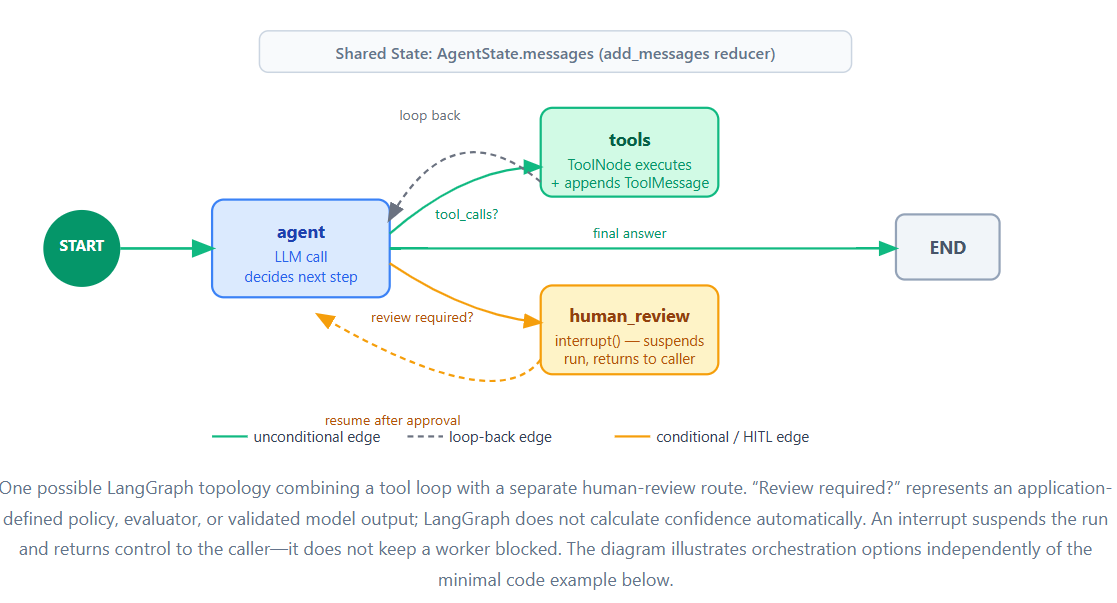

Execution flow

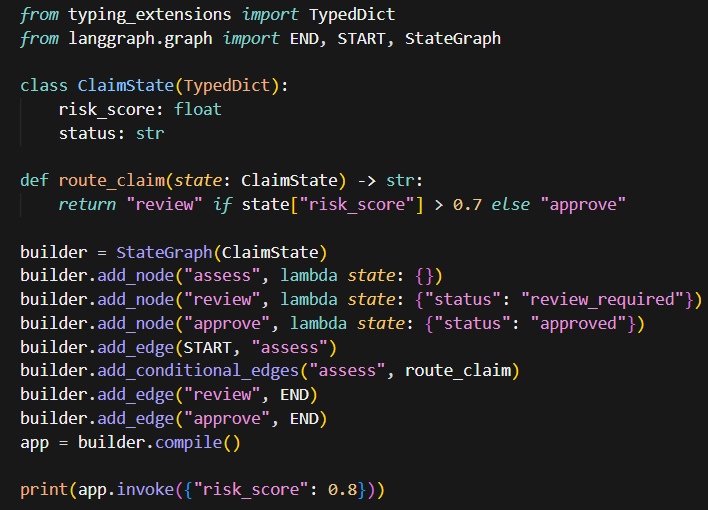

Syntax at a glance

Each node returns a partial state update. Your routing function decides the next step — that is the core LangGraph idea.

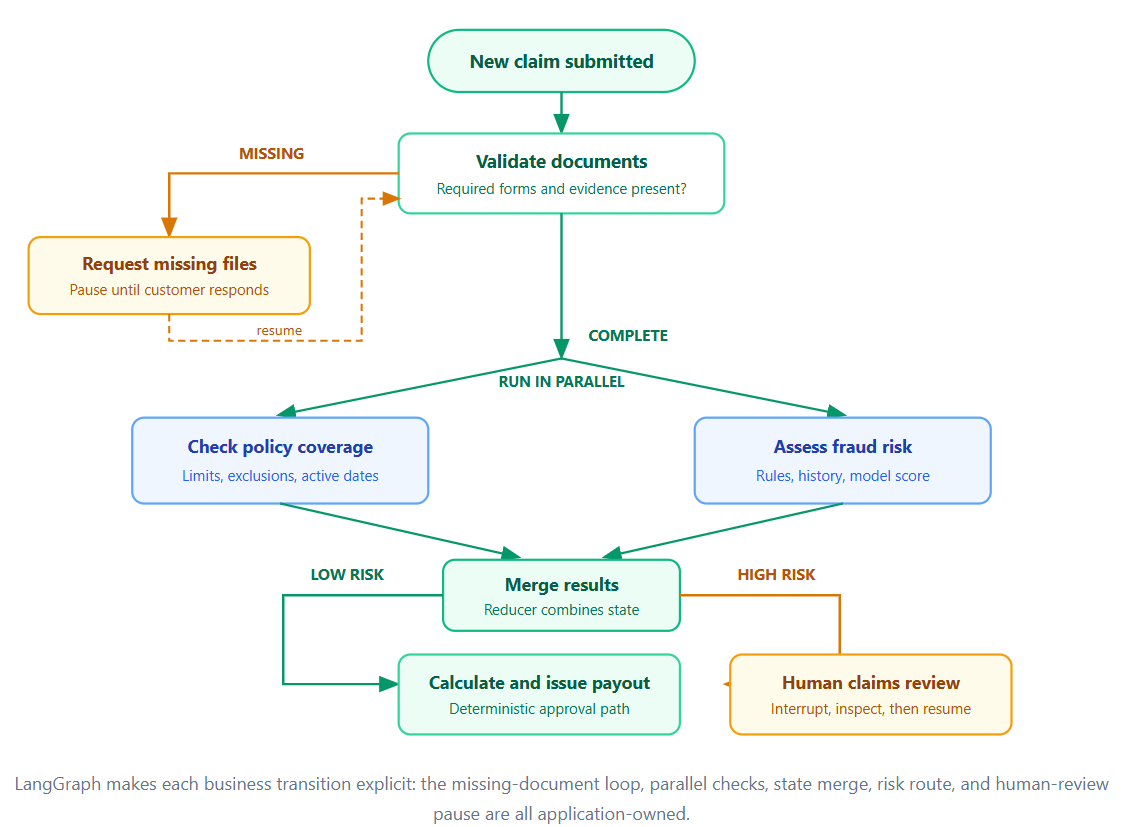

Example: insurance claim orchestration

An insurance claim is not just a chat. Documents may be requested in a loop, checks can run in parallel, and high-risk claims must pause for a human — LangGraph makes each transition explicit and testable.

Same Problem: LangChain vs LangGraph

---

Same requirement: customer asks for refund → check eligibility → approve refund → notify customer.

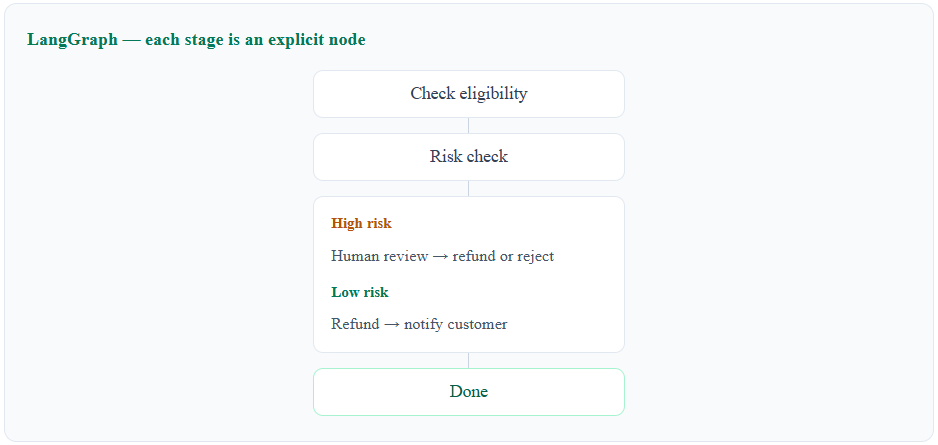

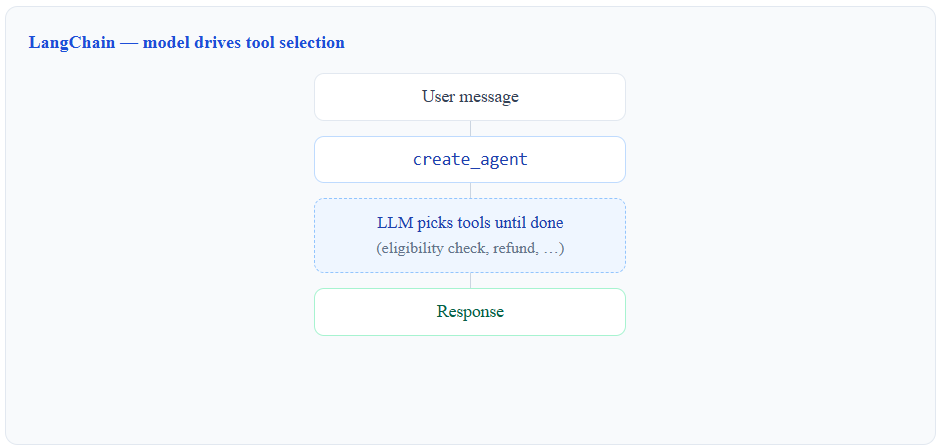

LangChain lets the model drive tool selection; LangGraph makes eligibility, risk routing, human review, and notification explicit, testable stages.

The Real Difference: Abstraction vs Orchestration

---

The split is abstraction level, not capability. LangChain is the higher-level agent framework — the model picks tools until it can answer, configured through prompts, tools, and middleware. LangGraph is a low-level orchestration/runtime framework — your code defines nodes, edges, and routing while the application owns structure, persistence, and interrupts.

Many teams embed create_agent as one node inside a larger LangGraph workflow when only part of the system needs a free-form tool loop.

When NOT to Use LangGraph

---

Don’t reach for LangGraph just because:

• You have an LLM.
• You have multiple tools.
• You have RAG.
• You need a chatbot.
• You need a simple retry.
• You need basic human approval.

Use LangGraph when orchestration itself has become part of your application’s business logic.

Where Deep Agents Fits

---

Deep Agents is an agent harness built on LangGraph, providing higher-level capabilities such as planning, filesystem tools, subagents, and context management. The pattern is: plan → delegate to parallel subagents → collect evidence → synthesise output. Most conventional chatbots and support agents do not need it; stick with create_agent until the task looks like handing a multi-hour project to a colleague. See the Deep Agents overview when you get there.

Can You Combine Them?

---

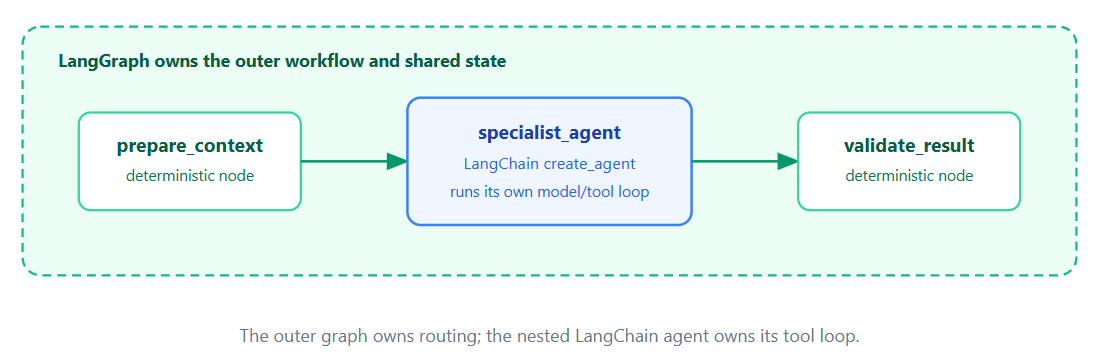

You can place a LangChain agent inside a larger LangGraph workflow — for example, a billing specialist node inside a case-management graph that routes between fraud review and finance approval.

Decision Table

---

Requirement	Start with	Reason
Chatbot or support agent that calls tools	LangChain create_agent	The standard model-and-tool loop is built in.
Approval before a refund or other sensitive action	LangChain middleware + checkpointer	Pause specific tools without manually constructing a LangGraph workflow.
Standard RAG with LangChain abstractions	LangChain	Retrieval helpers keep code small; RAG alone does not require LangChain.
Business stages, branches, or parallel steps you must own	LangGraph	Orchestration topology becomes explicit application logic.
Complex retrieval orchestration — custom retry or routing rules	LangGraph	When retrieval itself becomes a multi-stage workflow with explicit routing, retries, or conditional branches.
Long research or coding job with files and subagents	Deep Agents	A ready-made harness for autonomous multi-step work.

Conclusion: Where to Start

---

For most apps, start with create_agent and middleware. Move to LangGraph when orchestration becomes application logic. Consider Deep Agents only for long autonomous work with planning, files, and subagents — these are different paths, not mandatory steps.

Next steps: follow the LangChain quickstart, then skim the LangGraph overview when requirements grow. Use the highest abstraction level that still gives you the control you need.

Sources

---

• LangChain product architecture
• LangChain agents
• Human-in-the-loop middleware
• LangGraph Graph API
• LangGraph persistence
• LangGraph checkpointers
• LangGraph stores
• LangGraph interrupts
• Deep Agents overview

Examples intentionally omit provider credentials and some production error handling. Examples were verified against langchain==1.3.15, langgraph==1.2.11, deepagents==0.7.7, and langchain-google-genai==4.3.4 (August 2026). Pin compatible versions and run with your configured provider before deployment.
