PayU Payment Gateway : Android Integration

15 / Jun / 2016 by Noor Alam 3 comments

About PayU India

Gurgaon-based PayU India Internet Pvt. Ltd.  offers online payment solutions to websites and mobiles apps. PayU offers electronic payment services to merchant website through its partnerships with various banks and payment instrument companies.

PayU India started in October 2011 and claims to be the number one payments company in the e-commerce category in the country. It is currently serving more than 8,500 businesses in India, up from 5,000 merchants in November 2013. Its clientele includes companies such as BookMyShow, Snapdeal, Micromax, HUDA water board, Amity University, Religare Insurance, Goibibo and redBus.

Before going ahead with your integration please download the sample app source code provided by the PayU from here, run it and play with it. It will help you understand different classes in their sdk you need to use and parameters setting while creating payment requests.

Payment Methods available with PayU

Using PayU customers can make electronic payments through a variety of modes which are mentioned below:

  • Credit Card
  • Debit Card
  • Online Net Banking Account
  • EMI Payment
  • Cash Card
  • Email Invoicing
  • IVR
  • Cash on Delivery(COD)

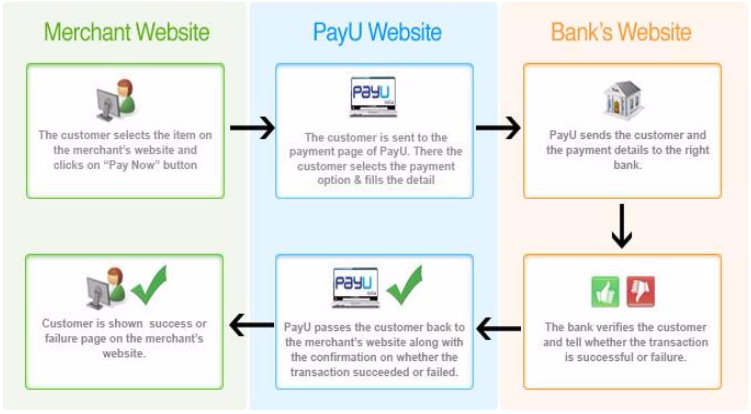

Payment Process Flow

payu_process

Android Integration

This post shows the integration of PayU with your android application. Before proceeding further with this blog, make sure that you must already have installed and configured:

  • Java JDK version 1.6 or greater
  • Android SDK
  • A Git client
  • Android Studio / Eclipse
  • All PayU PG Prerequisites (Key, Salt)

PayU provides the following two types of solutions using their SDK:

  • Non-Seamless: In case you decide to not build your own UI, you are free to use this module
  • Seamless: In this case you need to build your own UI to collect user banking information for example credit card number, CVV etc.

Non-Seamless Integration: Using SDK’s Inbuilt UI

  • Get all the required parameters
  • Create an object of PaymentParams, put all the obtained parameters in it by using its default set methods and setHash to paymentHash
    PaymentParams mPaymentParams = new PaymentParams();
    mPaymentParams.setKey(“gtKFFx”);
    mPaymentParams.setAmount(“15.0”);
    mPaymentParams.setProductInfo(“Tshirt”);
    mPaymentParams.setFirstName(“Guru”);
    mPaymentParams.setEmail(“guru@gmail.com”);
    mPaymentParams.setTxnId(“0123479543689”);
    mPaymentParams.setSurl(“https://payu.herokuapp.com/success”);
    mPaymentParams.setFurl(“https://payu.herokuapp.com/failure");
    mPaymentParams.setUdf1(“udf1l”);
    mPaymentParams.setUdf2(“udf2”);
    mPaymentParams.setUdf3(“udf3”);
    mPaymentParams.setUdf4(“udf4”);
    mPaymentParams.setUdf5(“udf5”);

    mPaymentParams.setHash("your payment hash");

    • You don’t need to set udf1-5 in case you are not using them
    • Email and Firstname can be empty strings “” if you don’t want to use them
    • For store user card feature
      mPaymentParams.setUserCredentials("your_key:user_id"), you need to pass user_credentials here
    • For offers mPaymentParams.setOfferKey("your_offer_key")
    • For any other payment default param (like phone and others)mPaymentParams.setPhone("your_number")
  • Get the required hashes by using your own server. Create an object of class PayuHashes and set the corresponding hashes using the default set methods provided
    mPaymentParams.setHash(payuHashes.getPaymentHash());

  • Create a new intent pointing to PayUBaseActivity and do the following:
    intent.putExtra(PayuConstants.ENV, PayuConstants.PRODUCTION_ENV);
    intent.putExtra(PayuConstants.PAYMENT_DEFAULT_PARAMS, mPaymentParams);
    intent.putExtra(PayuConstants.PAYU_HASHES, payuHashes);

  • To enable one-click payment
    // Enable one click with MOBILE as storage option for hash
    intent.putExtra(PayuConstants.STORE_ONE_CLICK_HASH,PayuConstants.STORE_ONE_CLICK_HASH_MOBILE);
    OR
    // Enable once click with MERCHANT SERVER as storage option for hash
    intent.putExtra(PayuConstants.STORE_ONE_CLICK_HASH,PayuConstants.STORE_ONE_CLICK_HASH_SERVER);
    OR
    // DISABLE one click payment
    intent.putExtra(PayuConstants.STORE_ONE_CLICK_HASH,PayuConstants.STORE_ONE_CLICK_HASH_NONE);

  • Start the activity and let PayU SDK take care of the rest
    startActivity(intent);



Seamless Integration: Using your own UI

In seamless kind of integration, we will only discuss the example of Credit Card and Net Banking transactions. Though you can integrate Cash Cards, Store Cards, one-click Payment Cards and PayU Money payments using this technique.

Seamless Credit / Debit card Payment Integration

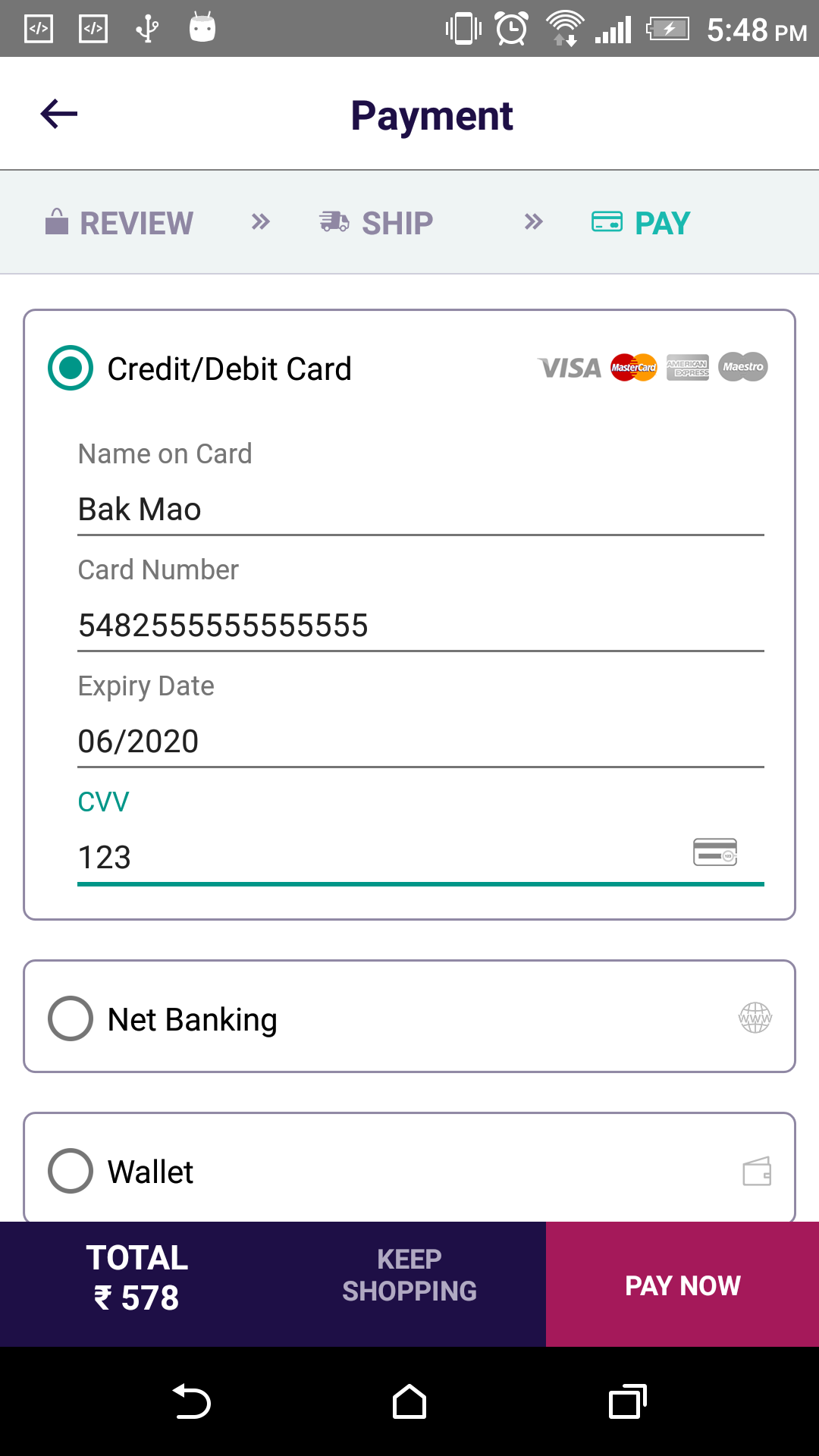

credit_card_own_ui



Create an object of PaymentParams, put all the obtained parameters in it by using its default set methods in the same way as you will create for the non-seamless style and setHash to paymentHash

  • Set the following additional properties to mPaymentParams
    mPaymentParams.setCardNumber(cardNumber);
    mPaymentParams.setCardName(cardName);
    mPaymentParams.setNameOnCard(cardName);
    mPaymentParams.setExpiryMonth(expiryMonth);// MM
    mPaymentParams.setExpiryYear(expiryYear);// YYYY
    mPaymentParams.setCvv(cvv);

  • To enable one-click payment
    // To store one click payment hash pass 1
    mPaymentParams.setEnableOneClickPayment(1);
    // Otherwise pass 0, OR don't call the method at all
    mPaymentParams.setEnableOneClickPayment(0);

  • Create a PaymentPostParams object with the above data of the type PostData. Make sure to set the environment (test or prod), create intent and launch the PaymentsActivity activity
    PostData postData = new PaymentPostParams(mPaymentParams, PayuConstants.CC).getPaymentPostParams();
    if (postData.getCode() == PayuErrors.NO_ERROR) {
      // launch webview
      PayuConfig payuConfig = new PayuConfig();
      payuConfig.setEnvironment(PayuConstants.PRODUCTION_ENV);
      payuConfig.setData(postData.getResult());
      Intent intent = new Intent(this,PaymentsActivity.class);
      intent.putExtra(PayuConstants.PAYU_CONFIG,payuConfig);
      startActivityForResult(intent, PayuConstants.PAYU_REQUEST_CODE);
    } else {
      // something went wrong
      Toast.makeText(this,postData.getResult(), Toast.LENGTH_LONG).show();
    }

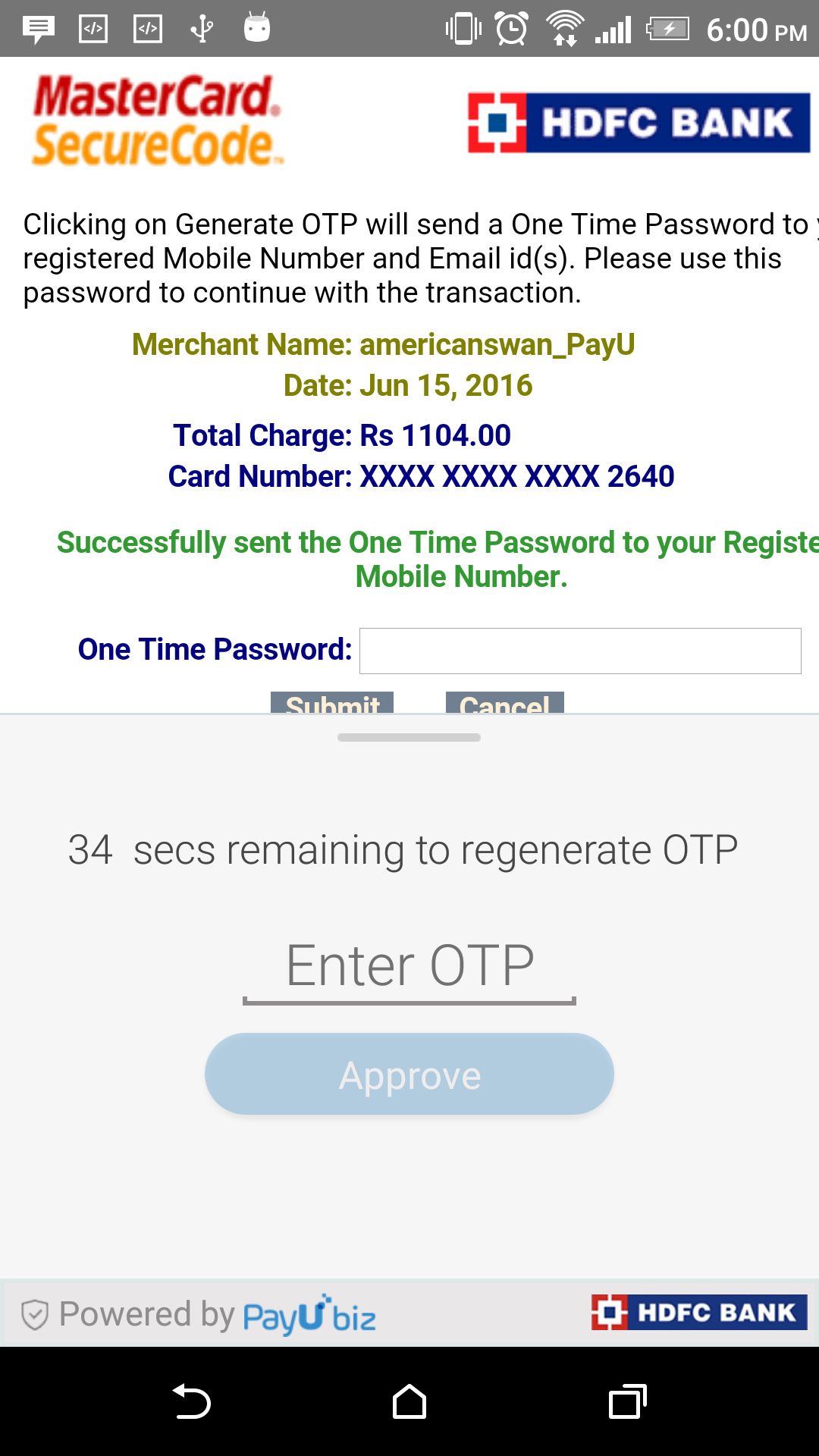

    At this point you should be able to see Bank’s 3D Secure page like the following for HDFC Bank

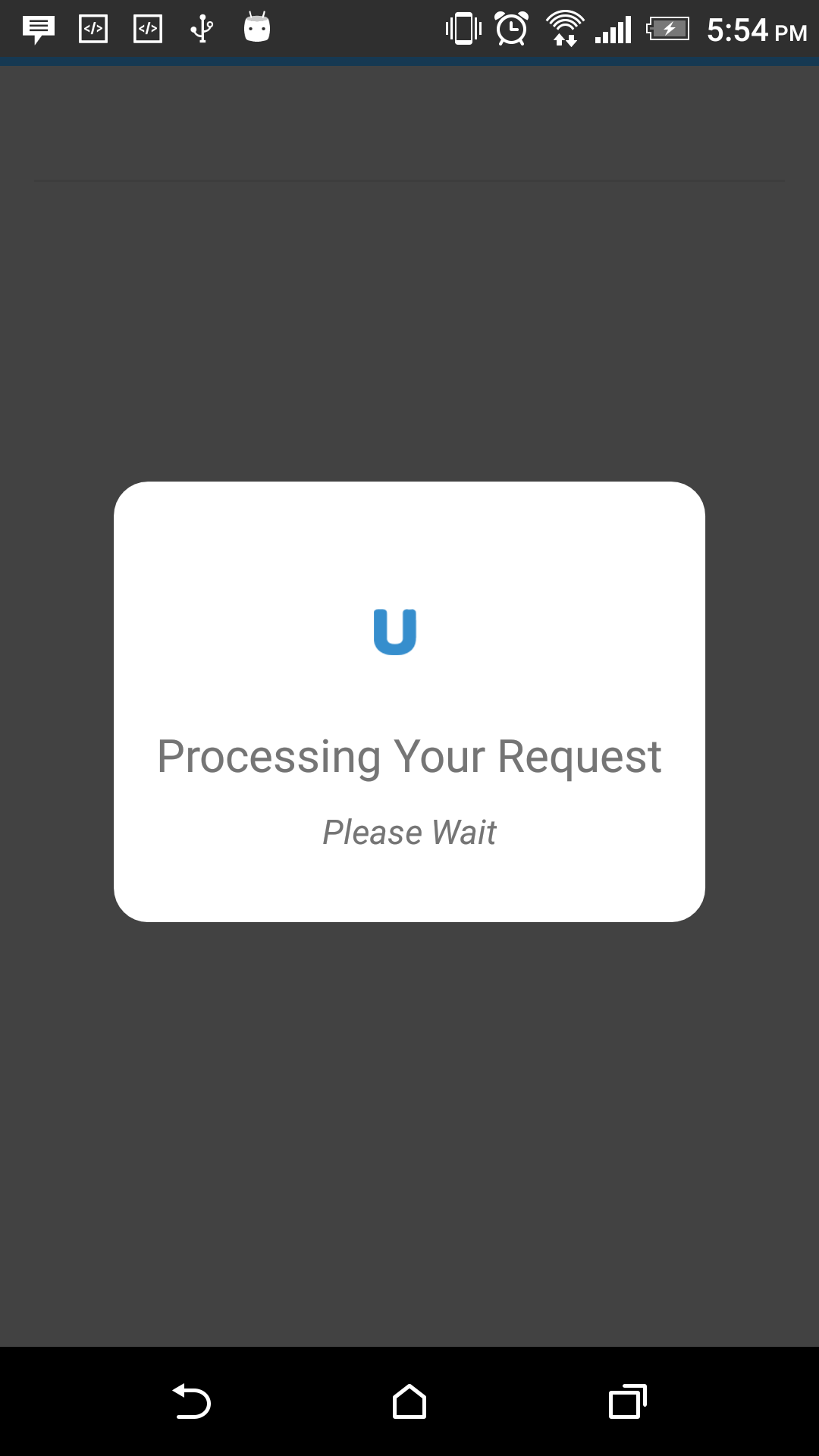

pay_processing_request

  • bank_page





Seamless Net Banking Integration



  • Create an object of PaymentParams, put all the obtained parameters in it by using its default set methods in the same way as you will create for the non-seamless style and setHash to paymentHash
  • Get the bankCode (String) of selected bank from your spinner/list view adapter and add it to the mPaymentParams created above
    mPaymentParams.setBankCode(bankCode);

  • Create PaymentPostParams object of the type PostData and start the PaymentsActivity
    PostData postData = new PaymentPostParams(mPaymentParams, PayuConstants.NB).getPaymentPostParams();
    if (postData.getCode() == PayuErrors.NO_ERROR){
      // launch webview
      PayuConfig payuConfig = new PayuConfig();
      payuConfig.setEnvironment(PayuConstants.PRODUCTION_ENV);
      payuConfig.setData(postData.getResult());
      Intent intent = new Intent(this,PaymentsActivity.class);
      intent.putExtra(PayuConstants.PAYU_CONFIG,payuConfig);
      startActivityForResult(intent, PayuConstants.PAYU_REQUEST_CODE);
    } else {
      // something went wrong
      Toast.makeText(this,postData.getResult(), Toast.LENGTH_LONG).show();
    }



To start off the integration process, you would be provided a test setup by PayU where you would be given a test merchant account and test credit card credentials to have a first-hand experience of the overall transaction flow. Here, you can make transaction request in our sample app (pointed to the testing server). Next step is to integrate the SDK code with your app. Once the testing is complete, you should be ready to point your app to the PayU production server for some real transactions.

Test credentials

Start with test key and salt (which targets the test server) to enable extra logs. Please use the following test account (only on test environment):

  • key: gtKFFx
  • Salt: eCwWELxi

Dummy test card

This will succeed only in the test environment. Also, all other cards (real or not) will fail on the test server.

  • Name on Card: Any name
  • Card Number: 5123456789012346
  • CVV: 123
  • Expiry Date: 05/2017

Its all about getting started with PayU integration in Android App. Best of Luck for you integration!
