Embracing Virtual Threads in Spring Boot

22 / May / 2023 by Anil Kumar Gola 0 comments

In this blog, we will see how we can take leverage of project loom virtual threads in spring-boot. We will also do some load testing with the help of JMeter and see how response time is for both virtual threads and normal threads.

Let’s quickly setup our spring boot project.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>3.1.0</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>org.anil</groupId>
<artifactId>virtualthread</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>virtualthread</name>
<description>virtualthread</description>
<properties>
<java.version>20</java.version>
<tomcat.version>11.0.0-M4</tomcat.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<!-- https://mvnrepository.com/artifact/org.apache.commons/commons-lang3 -->
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
<version>3.12.0</version>
</dependency>

<!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->

<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<scope>runtime</scope>
<version>8.0.33</version>
</dependency>


<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.24</version>
<scope>compile</scope>
</dependency>
</dependencies>

<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<configuration>
<compilerArgs>
<arg>--enable-preview</arg>
</compilerArgs>
<source>20</source>
<target>20</target>
</configuration>

</plugin>
</plugins>
</build>

</project>

We need to enable preview features since Project Loom is in the preview stage. We have to wait for Java 21’s release for it to become a final feature.

package org.anil.virtualthread;

import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.embedded.tomcat.TomcatProtocolHandlerCustomizer;
import org.springframework.context.annotation.Bean;

import java.util.concurrent.Executors;

@SpringBootApplication
@Slf4j
public class VirtualthreadApplication {

    public static void main(String[] args) {
        SpringApplication.run(VirtualthreadApplication.class, args);
    }

    @Bean
    public TomcatProtocolHandlerCustomizer<?> protocolHandlerVirtualThreadExecutorCustomizer() {
        return protocolHandler -> {
            log.info("Configuring " + protocolHandler + " to use VirtualThreadPerTaskExecutor");
            protocolHandler.setExecutor(Executors.newVirtualThreadPerTaskExecutor());
        };
    }

}

As of now, we need to configure virtual thread settings for the Tomcat server. In the future, this may be taken care of in auto-configuration itself.

package org.anil.virtualthread;

import org.apache.commons.lang3.RandomStringUtils;
import org.apache.commons.lang3.RandomUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
public class HomeController {

    @Autowired
    ProductRepository productRepository;


    @GetMapping("/thread")
    public List<Product> checkThread() throws InterruptedException {
        Thread.sleep(1000);
        return productRepository.findAll();
    }


    @PostMapping("/save")
    public String saveProduct() throws InterruptedException {
        for(int i=0; i< 1000; i++){
            Product product = new Product();
            product.setProductName(RandomStringUtils.randomAlphanumeric(5));
            product.setPrice(RandomUtils.nextLong(10,1000));
            product.setPrice(1L);
            productRepository.save(product);
        }
        return "anil";
    }
}

We have a GetMapping that returns all the products; we have 1000 Products in our database.

We have made our thread sleep for 1 second. Let’s see our Product entity and product repository as well.

package org.anil.virtualthread;

import jakarta.persistence.Entity;
import jakarta.persistence.GeneratedValue;
import jakarta.persistence.GenerationType;
import jakarta.persistence.Id;
import lombok.Getter;
import lombok.Setter;

@Entity
@Getter
@Setter
public class Product {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String productName;
    private Long price;
}
package org.anil.virtualthread;

import org.springframework.data.jpa.repository.JpaRepository;

public interface ProductRepository extends JpaRepository<Product,Long> {
}

Let’s see our application.yaml

spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    maxIdle: 1
    timeBetweenEvictionRunsMillis: 60000
    hikari:
      connection-timeout: 60000
      maximum-pool-size: 10
      minimum-idle: 5
    url: jdbc:mysql://localhost:3306/todos
    testWhileIdle: true
    username: root
    password: root1234
    validationQuery: SELECT 1
  flyway:
    baseline-version: 0
    enabled: true
    validate-on-migrate: false
  jpa:
    database: mysql
    generate-ddl: true
    hibernate:
      ddl-auto: none
      format_sql: true
    show-sql: true

Let’s first run the application by commenting on the following line: This will run our application on normal threads.

package org.anil.virtualthread;

import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.embedded.tomcat.TomcatProtocolHandlerCustomizer;
import org.springframework.context.annotation.Bean;

import java.util.concurrent.Executors;

@SpringBootApplication
@Slf4j
public class VirtualthreadApplication {

    public static void main(String[] args) {
        SpringApplication.run(VirtualthreadApplication.class, args);
    }

//    @Bean
//    public TomcatProtocolHandlerCustomizer<?> protocolHandlerVirtualThreadExecutorCustomizer() {
//        return protocolHandler -> {
//            log.info("Configuring " + protocolHandler + " to use VirtualThreadPerTaskExecutor");
//            protocolHandler.setExecutor(Executors.newVirtualThreadPerTaskExecutor());
//        };
//    }
}

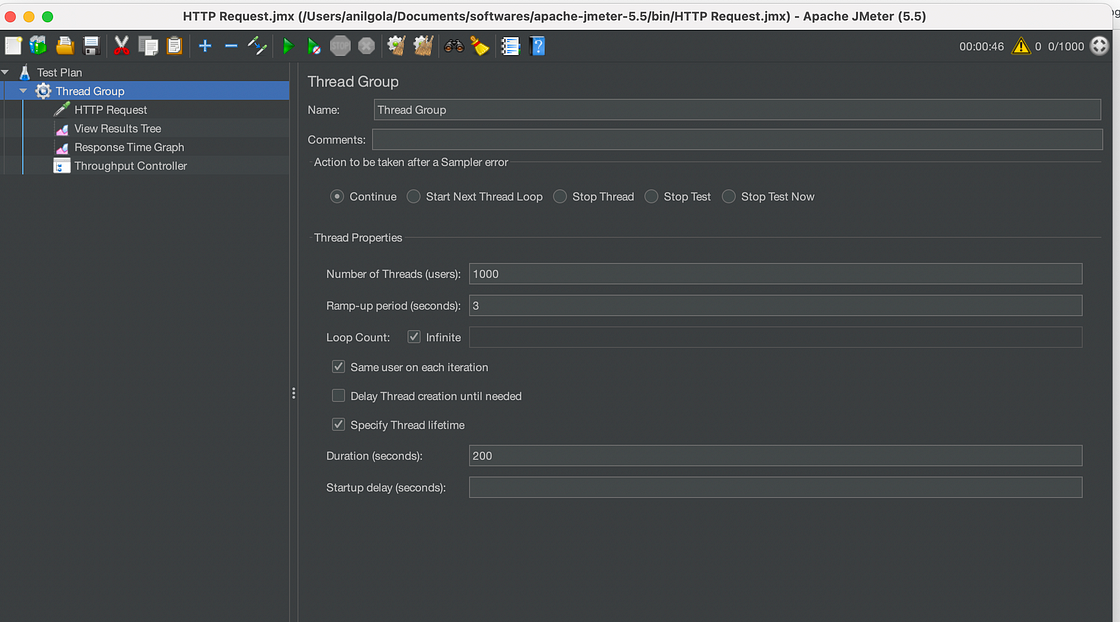

Now let’s setup our JMeter. We will have 1000 requests, which will ramp up in 3 seconds. And it will continue like this for a duration of 200 seconds. Every 3 seconds, 1000 GET (“/thread”) requests will be fired. We have also added a Response Time Graph Listener.

Now let’s run our test and wait for 200 seconds.

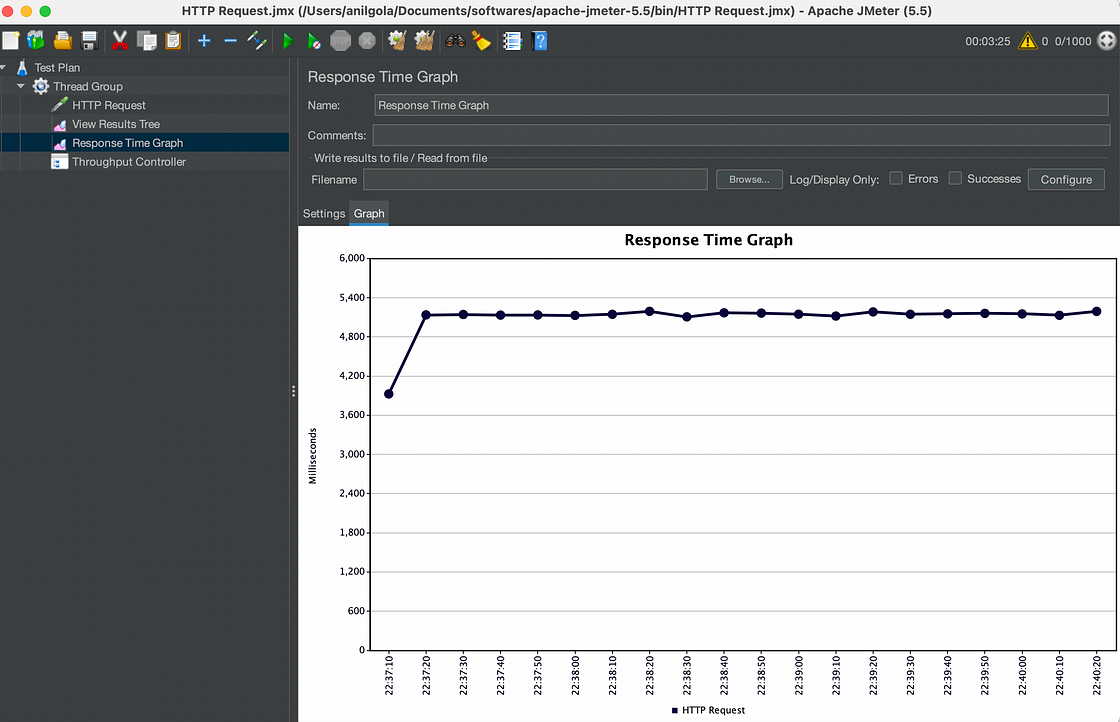

In the graph, we can see that once the entire thread pool of Tomcat is utilised, the response time shoots from 3600 ms to 5200 ms. Since then, it has remained like that only as previous threads are released.

Now let’s run a load test with the virtual thread feature enabled.

package org.anil.virtualthread;

import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.embedded.tomcat.TomcatProtocolHandlerCustomizer;
import org.springframework.context.annotation.Bean;

import java.util.concurrent.Executors;

@SpringBootApplication
@Slf4j
public class VirtualthreadApplication {

    public static void main(String[] args) {
        SpringApplication.run(VirtualthreadApplication.class, args);
    }

    @Bean
    public TomcatProtocolHandlerCustomizer<?> protocolHandlerVirtualThreadExecutorCustomizer() {
        return protocolHandler -> {
            log.info("Configuring " + protocolHandler + " to use VirtualThreadPerTaskExecutor");
            protocolHandler.setExecutor(Executors.newVirtualThreadPerTaskExecutor());
        };
    }

}

Now let’s run our test and wait for 200 seconds.

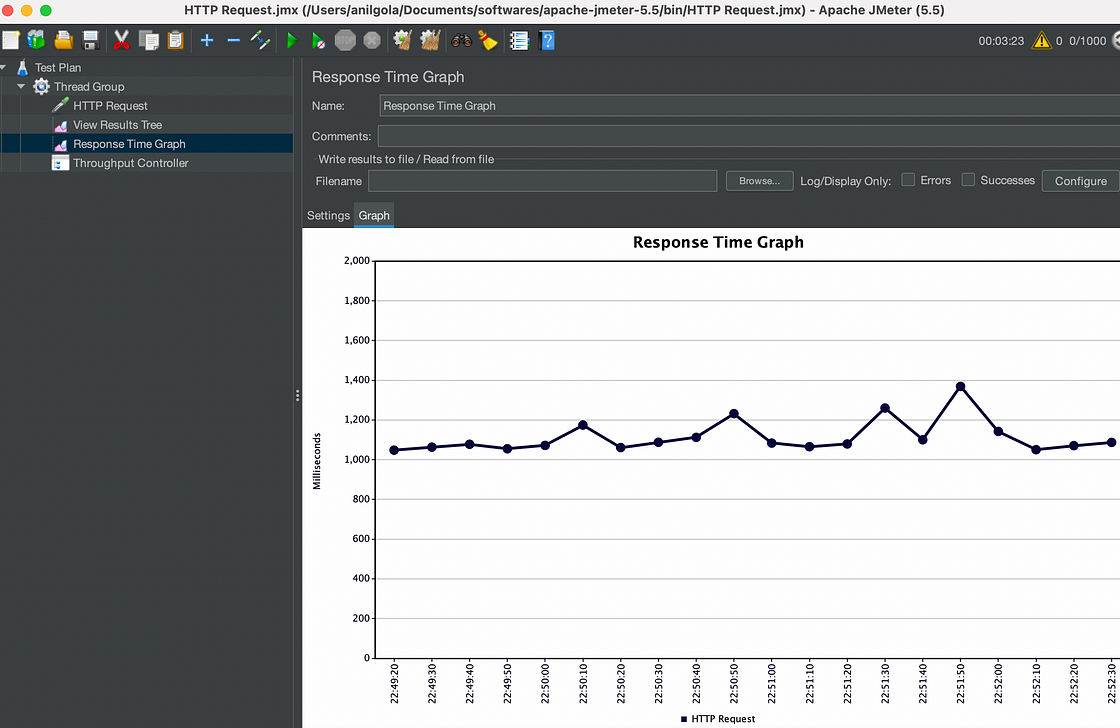

Clearly, now the response time for concurrent 1000 requests is nearly just above 1000 ms and at some point, shoots up to 1400 seconds, which is far better than when we were using normal threads.

Clearly, when we need to utilise the underlying CPU to the fullest, we should start embracing virtual threads in our application, and suddenly we can see that the throughput of our application has increased manifold for the same hardware.

This is much better than switching to reactive programming, which means rewriting all your code, which is very hard to maintain and even harder to debug.

Simply put, more users can use the application and get their response simultaneously as the first user.

Looking for in-depth analysis and expert opinions? Check out our other resources now.

The original post link is https://medium.com/@anil.java.story/embracing-virtual-threads-in-spring-boot-4140d3b8a5a
